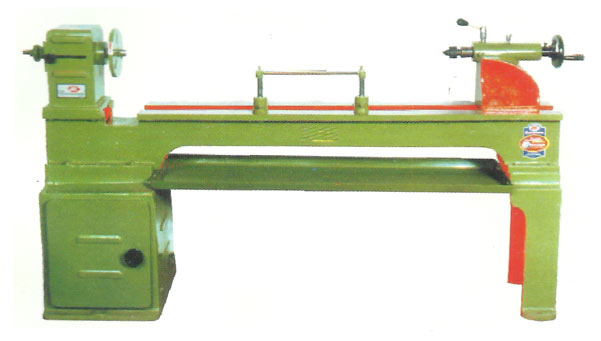

| Turning Lathe | Model No. j-911 |
Model No. j-921 |
Model No. j-931 |
STANDARD ACCE. |
| Length of bed | 4½ ft. | 6 ft. | 8 ft. | Motor Pulley |
| Width of bed | 7" | 8½" | 9" | Motor Plate |
| Height of center | 6½" | 8" | 8" | Face Plate |
| Admit between centres | 30" | 48" | 72" | 3 Pin Centre |
| Approx. spindle speed- RPM | 700/1400/2800 | 700/1400/2800 | 700/1400/2800 | Revolving Centre |
| Face plate diameter | 7½" | 7½" | 7½" | V-belt |
| Power required HP/RPM | 1/1440 | 1/1440 | 1/1440 | |
| Approx. wt. of machine - kg. | 300 | 350 | 400 |
