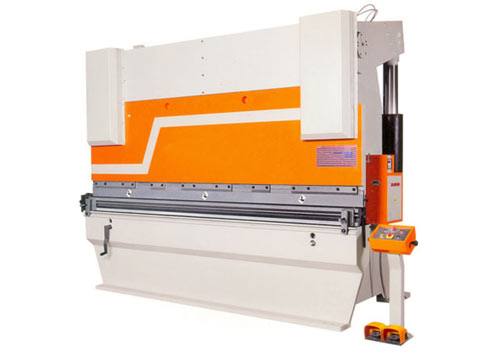

Hydraulic Press Brake Specification

Products Range

-->

Model	Tonnage	Table Length	Hydraulic Press Brake Bending Capacity (In M.S. UTS) 450kg./mm		Table Width	Clear Pass	Ram Stroke	Open Height	Throat Depth	Speed Approach Pressing Return	Power	Packing Dimensions (L x W x H)	Weight
			mm	mm	mm	mm	mm	mm		hp	mm
DMC-215	20	1500	1.6 x 1500	2 x 1250	150	1060	100	250	100	35-9-35	2	1700 x 1050 x 1900	1500
DMC-320	30	2000	2 x 2000	3 x 1250	150	1550	100	250	200	30-7-30	3	2700 x 1150 x 1900	2500
DMC-425	40	2500	2 x 2500	3 x 1500	150	2055	100	250	200	40-8-40	3	1700 x 1050 x 1900	3000
DMC-515	50	1500	4 x 1500	5 x 1250	190	1050	100	250	200	35-7-35	5	2000 x 1050 x 1900	2500
DMC-520	50	2000	3 x 2000	4 x 1500	190	1550	100	250	200	35-7-35	5	2200 x 1050 x 1900	3200
DMC-525	50	2500	2.5 x 2500	3 x 2000	190	2055	100	250	200	35-7-35	5	2700 x 1050 x 1900	3500
DMC-625	65	2500	3 x 2500	4 x 2000	190	2055	150	330	200	30-5-30	5	2700 x 1200 x 2000	3700
DMC-630	65	3000	2.5 x 3000	3 x 2500	190	2540	150	330	200	30-5-30	5	3350 x 1200 x 2000	4300
DMC-825	80	2500	4 x 2500	5 x 2000	190	2055	150	330	200	38-6-45	7.5	2700 x 1550 x 2300	4500
DMC-830	80	3000	3 x 3000	4 x 2500	190	2540	150	330	200	38-6-45	7.5	3350 x 1550 x 2300	5000
DMC-1025	100	2500	5 x 2500	6 x 2000	190	2055	150	330	200	38-6-45	7.5	2700 x 1150 x 2300	5400
DMC-1030	100	3000	4 x 3000	5 x 2500	190	2540	150	330	200	38-6-45	7.5	3350 x 1550 x 2300	6200
DMC-1040	100	4000	3 x 4000	4 x 3000	190	3250	150	330	200	38-6-45	7.5	4250 x 1650 x 2300	7000
DMC-1225	125	2500	6 x 2500	8 x 2000	250	2055	150	350	300	38-5-40	10	2750 x 1650 x 2500	6500
DMC-1230	125	3000	5 x 3000	6 x 2500	250	2540	150	350	300	38-5-40	10	3350 x 1650 x 2500	7000
DMC-1240	125	4000	4 x 4000	5 x 3000	250	3250	150	350	300	38-5-40	10	4200 x 1650 x 2500	8300
DMC-1625	160	2500	8 x 2500	10 x 2000	230	2055	150	350	300	38-6-40	15	3350 x 1800 x 2600	8200
DMC-1630	160	3000	6 x 3000	8 x 2500	230	2540	150	350	300	38-6-40	15	2850 x 2050 x 2750	8800
DMC-1640	160	4000	5 x 4000	6 x 3000	230	3100	150	350	300	38-6-40	15	3350 x 2050 x 2750	9800
DMC-2025	200	2500	10 x 2500	12 x 2000	230	2055	200	400	300	35-7-35	20	4350 x 2100 x 2800	9500
DMC-2030	200	3000	8 x 3000	10 x 2500	230	2540	200	400	300	35-7-35	20	3350 x 2150 x 2900	10500
DMC-2040	200	4000	6 x 4000	8 x 3000	230	3100	200	400	300	35-7-35	20	4350 x 2150 x 2900	12500
DMC-2530	250	3000	10 x 3000	12 x 2500	300	2540	200	400	300	35-6-40	25	3350 x 2200 x 3000	12000
DMC-2540	250	4000	8 x 4000	10 x 3000	300	3100	200	400	300	35-6-40	25	4350 x 2200 x 3000	13500
DMC-3030	300	3000	12 x 3000	15 x 2500	300	2540	200	400	300	30-6-35	30	3350 x 1200 x 2000	12000
DMC-3040	300	4000	10 x 4000	12 x 3000	300	3100	200	400	300	30-6-35	30	3350 x 1550 x 2300	15000
DMC-4030	400	3000	16 x 3000	20 x 2500	300	2540	250	500	350	30-6-35	40	3350 x 2200 x 3000	18000
DMC-4040	400	4000	12 x 4000	16 x 3000	300	3100	250	500	350	30-6-35	40	4350 x 2200 x 3000	19500
