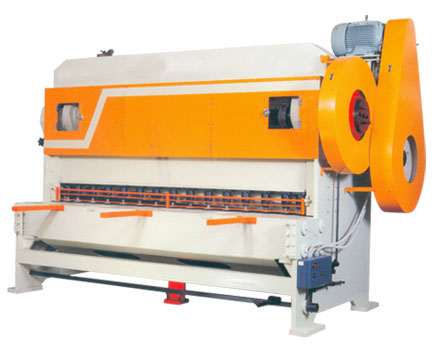

Specification for "Over Crank" Shearing Machine

Products Range

-->

Model No.	Ros-1	Ros-2	Ros-3	Ros-4	Ros-5	Ros-6	Ros-7	Ros-8	Ros-9	Ros-10	Ros-11	Ros-12	Ros-13	Ros-14	Ros-15
Cutting Cap. Thick of M.S.	1270 x 6	1525 x 6	2030 x 6	2540 x 6	3125 x 6	1525 x 8	2030 x 8	2540 x 8	3125 x 8	2030 x 10	2540 x 10	3125 x 10	2030 x 13	2540 x 13	3125 x 13
Cutting Length	1270	1525	2030	2540	3125	1525	2030	2540	3125	2030	2540	3125	2030	2540	3125
Standard Front Gauge	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Standard Rear Gauge	750	750	750	750	750	750	750	750	750	750	750	750	750	750	750
Table Height	800	800	800	800	800	800	800	800	800	800	800	800	800	800	800
Table Width	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Blade Length	1270	1525	2030	2540	3125	1525	2030	2540	3125	2030	2540	3125	2030	2540	3125
Blade Width	75	75	75	75	75	75	75	75	75	100	100	100	100	100	100
Blade Thickness	18	18	22	22	22	22	22	22	22	25	25	25	28	28	28
Stroke Per Minute	25	25	20	20	20	20	20	20	20	20	20	20	20	20	20
Machine Length	2350	2575	3100	3500	4250	2800	3150	3600	4350	3225	3650	4300	3350	3600	4400
Machine Width	2150	2150	2200	2200	2200	2000	2150	2000	2250	2250	2450	2550	2500	2700	2800
Machine Height	2600	2600	2700	2700	2700	2500	2600	2650	2700	2700	2750	2800	2800	2900	3000
Main Motor HP/KW	7.5 / 5.6	10/7.7	10/7.7	12 / 9.7	15 / 11.2	12.5 / 9.7	12.5 / 9.7	15 / 11.2	20 / 15	15 / 11.2	20 / 15	25 / 18.7	20/15	25/18.7	30/22.5
