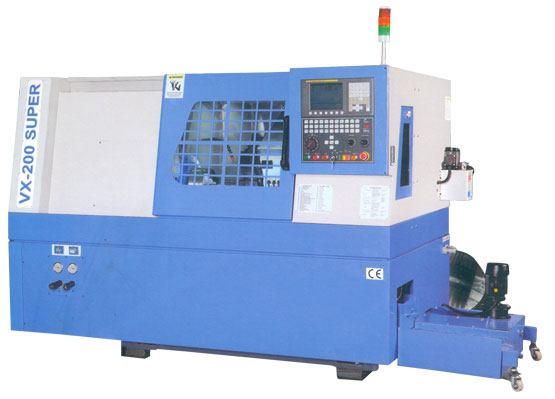

| VX-200 | New VX-200 Super | |
| Capacity | ||
| Swing Over Bed | Ø 400mm | Ø 400mm |
| Std. Turning Dia. | Ø 200mm | Ø 200mm |
| Max. Turning Dia. | Ø 300mm | Ø 300mm |
| Dist. Between Centers | 600mm | 600mm |
| Max. Turning Length | 450mm | 550mm |
| Sliders | ||
| Cross (X axis) Travel | 170mm | 170mm |
| Longitudinal (Z axis) Travel | 450mm | 550 |
| Rapid Feed (x & z axis) | 24m / min. | 24m / min |
| Ball Screw | ||
| Z axis | Ø 32 x 10P | Ø 32 x 10P |
| Motor Torque (Z axis) | 7 NM | 7NM |
| X axis | Ø 32 x 10P | Ø 32 x 10P |
| Motor Torque (X axis) | 7 NM | 7NM |
| Main Spindle | ||
| Spindle Motor (Cont./30 min) | 5.5/7.5 Kw | 7.5/11 Kw |
| Spindle Nose | A25 | A26 |
| Spindle Bore | Ø 38mm | Ø 63mm |
| Max. Bar Capacity | Ø 25mm | Ø 51mm |
| Chuck Size | Ø 200mm | Ø 200mm |
| Front Bearing Bore | Ø 80mm | Ø 100mm |
| Speed Range | 50-3500rpm | 50-3500rpm |
| Full Power Speed Range | 1500-3000rpm | 1000-3000rpm |
| Turret | ||
| Size | BTP-80 | BTP-80 |
| No. of Stations | 8 | 8 |
| Tool Size | 25x25mm | 25x25mm |
| Max. Boring Bar Capacity | Ø 40mm | Ø 40mm |
| Tail Stock | ||
| Quill Diameter | Ø 80mm | Ø 80mm |
| Quill Stroke | 100mm | 100mm |
| Taper in Quill | MT-4 | MT-4 |
| Accuracy | ||
| Positioning Accuracy | ±0.007mm | 0.007mm |
| Repeatability | 0.003mm | ±0.003mm |
| Other Data | ||
| Weight (approx) | 3450 Kg. | 3800Kg. |
| Machine Dim. (LxBxH) | 3040 x 1630 x 1800mm | 3040 x 1630 x 1800mm |
| Control System | Fanuc Oi Mate TD Siemens 828D Basic-T |
Fanuc Oi Mate TD Siemens 828D Basic-T |
