Wood Working M/c's

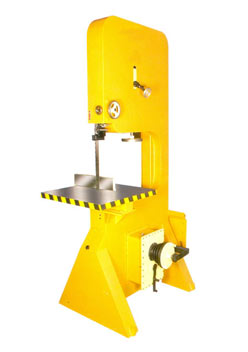

Wood & Metal Cutting Bandsaw Machines Gear Box (Vertical)
Specifications
Dia of Bandsaw Wheel 12" 18" 24" 30" 36" 39" 42"
Depth of Cut 7" 15" 18" 24" 28" 30" 33"
Size of Table 18 x 18 20" x 22" 30"x27" 35"x27" 41" x 42" 42" x 42" 43" x 42"
Diameter and Breadth of the wheel 12 x 1¼" 18" x 1¾" 24" x 2" 24" x 2' 36"x3" 36" x 3" 42" x3"
Maximum Total Length
of Blade about ft. 7' -6" 10' -6" 14'-3" 19'-0" 20' -6 22'-0" 24' -0"
B.H.P. Required 1½ H.P 3 H.P. 5 H.P. 7½ H.P. 10 H.P. 12 H.P. 15 H.P.
Speed R.P.M. 900 800 750 700 650 600 550
Weight Approx Kgs. 380 530 950 1300 1400 1400 1600
