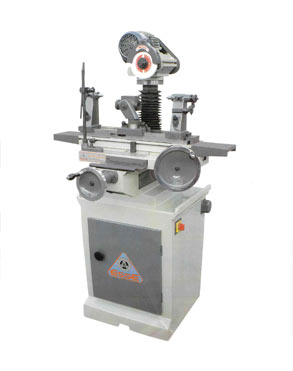

Workshop M/c's / Tool Cutter Grinder

Specifications

Products Range

-->

S.No.	S P E C I F I C A T I O N S	ESSE-1	ESSE-2	ESSE-3
1.	Swing Over Table	230 mm	270 mm	305 mm
2.	Max Distance Between Center	305 mm	450 mm	560 mm
3.	Table Longitudinal Traverse	325 mm	400 mm	510 mm
4.	Table Cross Tranverse	200 mm	210 mm	210 mm
5.	Table Dimenstions	530x142 mm	600x150 mm	805x156 mm
6.	T Slots Width	10 mm	12 mm	12 mm
7.	Center of Wheal Above Table	290 mm	310 mm	330 mm
8.	Table Swivel	90°	90°	90°
9.	Head Swivel	360°	360°	360°
10.	Grinding Spindle Speed	2800 RPM	2800 RPM	2800 RPM
11.	H.P. of Motor	1/1441	1.5/1440	1.5/1440
12.	Height of Machine	1550 mm	1610 mm	1680 mm
13.	Weight Machine	500 Kg	600 Kg	700 Kg
