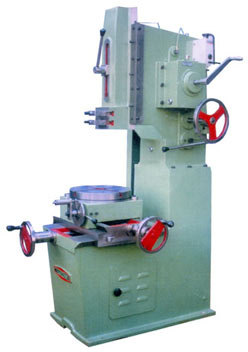

Workshop M/c's / Slotting Machine

Specifications

Model	125	150	200	250	300	375	450	500
Working Stroke	125	150	200	250	300	375	450	500
Length of Ram	200	560	560	735	810	900	1300	1300
Vertical Adjustment of Ram	90	150	150	250	300	300	325	325
Center of Cutting Tools to Col	165	250	250	380	455	550	750	750
Working Surface of Table	200	280	280	355	610	600	900	900
Longitudinal Transverse of Table	165	250	250	300	530	530	800	800
Bore of Base	28	38	38	55	57	60	100	100
Cross Transverse of Table	215	250	250	300	455	500	600	600
Table Top to Ram	200	330	330	380	400	525	700	700
No. of Speeds	2	2	2	2	4	4	6	6
Range of Speeds	90-170	60-150	60-150	46-70	20-70	20-70	20-70	20-70
Motor Recommended	1 H.P.	1.5 H.P.	1.5 H.P.	2 H.P.	3 H.P.	3 H.P.	5 H.P.	7.5 H.P.
R.P.M. of Motor	1440	1440	1440	1440	960	960	960	960
Approx. Weight (Kg.)	350	800	800	1100	1500	2000	4500	4500
Gross Weight (Kg.) with Packing	450	950	950	1300	1800	2500	5000	5000
