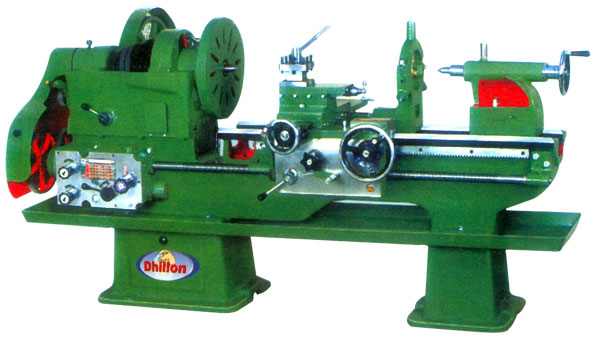

Precision Lathe Machine

Technical Specifications
	Light Duty Lathe Machine-1 1370 mm, 1600mm, & 1830 mm	Medium Duty Lathe Machine-1 1370 mm, 1600mm, & 1830 mm	Heavy Duty Lathe Machine-3 & 4 1675 m, 2135 mm 2740 mm, 3050 MM. , & 3660 MM.	MDS Model Lathe Machine-5 1600 mm, 1830mm.
Capacity	Metric	Metric	Metric	Metric
Height of Centre	165 mm.	215 mm.	254 mm.	215mm
Swing Over Bed	325 mm.	425 mm.	490 mm.	425mm
Swing Over Cross Slide	180 mm.	250 mm.	290 mm	250mm
Movement of Cross Slide	225 mm.	280 mm.	300 mm	280mm
Swing in Gap	500 mm.	620mm.	800 mm	620mm

Bed
Bed Type	2 V & 2 Flat	2 V & 2 Flat	2 V & 2 Flat	2 V & 2 Flat
Bed Width	238 mm.	279	325 mm	279mm
Lenght of Gap in Bed	100mm	110 mm.	150 mm	110mm
Lenght of Gap in Front of Face Plate	125 mm.	125 mm.	200 mm	125mm

Main Spindle
Size of Threaded Spindle Nose	8 T.P.I. 60mm	6 T.P.I. 75 mm	6 T.P.I.75 mm.	6 T.P.I. 75mm
Taper Bore in Spindle Sleeve	MT-3	MT-4	MT-4	MT-4
Spindle Bore	40mm.	52mm	190 mm	52mm

Tail Stock
Ram Diameter	38.1 mm.	50.8 mm.	50.8mm	50.8mm
Taper Bore in Centre Sleeve	MT-3	MT-4	MT-4	MT-4
Ram Travel	115 mm.	150mm	190 mm.	150mm

Compound Slide
Travel of Compound Slide	120mm.	150 mm.	150mm	150mm
Tool Shank Section	22 22mm.	25 x 25 mm.	25 x 25mm	25 x 25mm

Speeds
No. of Speeds	8	6	8	6
Range	35-825 RPM	40-550 RPM	25-475 RPM	40-550 RPM

Thread / No. Range
Lead Screw Diameter & Pitch	25.4mm x 4 TPI	31.75 mm. x 4 TPI	38.1mm. x 4 TPI	25.4mm x 4 TPI
metric	19/0.50 to 8.0mm.	19/0.50 to 8.0mm.	13/1 to 6mm.	20/0.50 to 7.5mm
Inch	23/4 to 40 TPI	23/4 to 40 TPi	19/2 to 24 TPI	36/4 to 60 TPI

Electricals
Main Motor (1440 R. P. M.-AC-3 Phase)	1 H.P/440 V	2 H.P/440 V	2 H.P./440 V	2 H.P./440 V
