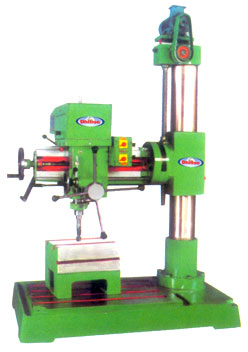

| DH 40/1000 DC |
| Drillin Capacity |
40 mm |
| Spindle Nose |
MT-4 |
| Spindle Travel |
175 |
| Dist. From column to Spindle Max./Mini. |
1020-400 |
| Dist. From Spindle to Base Max. Mini |
1180-980 |
| Number of Spindle Speeds |
8 |
| Spinle Speed Range |
90-1000 RPM |
| Number of Power Feeds |
2 |
| Power Feed Range |
0.20-0.10mm. Rev |
| Coloumn Diameter |
210 |
| Drilling Motor |
1.50/1400 KW/rpm
1.50/2800 KW/rpm |
| Elevation motor for arm |
0.75/1440 KW/rpm |
|
| SC 25-38 |
| Drilling Capacity |
25mm |
38mm |
| Spindle Nose |
MT-3 |
MT-4 |
| Spindle Travel |
185 |
220 |
| Dist. From Column to Spindle Max./Mini |
650-295 |
810-360 |
| Dist. From Spindle to Base Max. Mini |
900-125 |
930-230 |
| Number of Spindle |
8 |
8 |
| Spindle Speed Range |
73-1800 RPM |
62-1980 RPM |
| Column Diameter |
130 |
165 |
| Drilling Motor |
1/1440 HP/rpm |
1.50/1400 KW/rpm |
| Elevation motor for arm |
0.50/1440 HP/rpm |
0.50/1440 KW/rpm |
|
