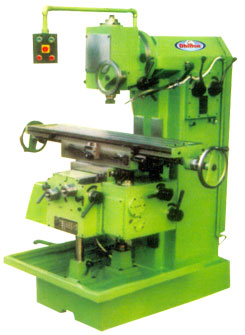

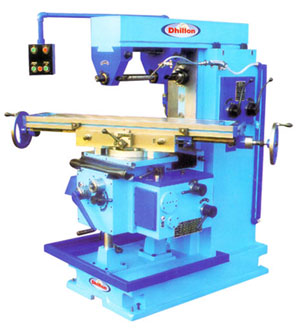

All Geared Milling Machine

CNC Milling Machine

Specifications of
Universal All Geared Milling Machines

Model	Dum-2	Dum3	Dum4
Table
Working Table	1250x275	1400 x 325	1600 x 350
Swivel of Table	40	40	45

Spindle
Arbour Diameter	25.5	25.4	25.4
No. of Range Speeds	9(50-950)	9 (50-950)	9(50-950)
Taper of Spindle	ISO-40	ISO-40	ISO-40

Feeds
X-Longitudinal	650	700	800
Y-Cross	200	280	330
Z-Vertical	405	535	610

No. & Range of Feeds (Per Min.)
X-Longitudinal	6 (11-75)	6 (11-75)	6 (11-75)
Y-Cross	6 (11-91)	6 (11-91)	6 (11-91)
Z-Vertical	6 (2-14)	6 (2-14)	6 (2-14)

No. & Range of Rapid Feeds
X-Longitudinal	1 (384)	1 (384)	1 (384)
Y-Cross	1 (470)	1 (470)	1 (470)
Z-Vertical	1 (76)	1 (76)	1 (76)

Electricals
Main Drive Motor (1440 RPM)	2 HP	3 HP	5 HP
Feed Motor (960 RPM)	2 HP	2 HP	2 HP
Coolant Pump (2800 RPM)	0.1 HP	0.1 HP	0.1 HP

Weight of Machine
Net Weight	1800 Kg.	2700 Kg.	3500 Kg.
Gross Weight	2200 Kg.	3200 Kg.	4200 Kg.
